#57 Stone for New York Drainage Work, Pads and Beds

The moment a drainage job becomes possible is the moment the frost is fully out and the trench walls stop slumping, which upstate is somewhere in April and on Long Island can be a month earlier. Wait much past that and the summer growing season is in the way. Push the other direction and you are cutting a trench into ground that will heave again as it refreezes. That narrow window is why the #57 Stone orders cluster in spring and again in early autumn, once the heat has gone and before the ground closes.

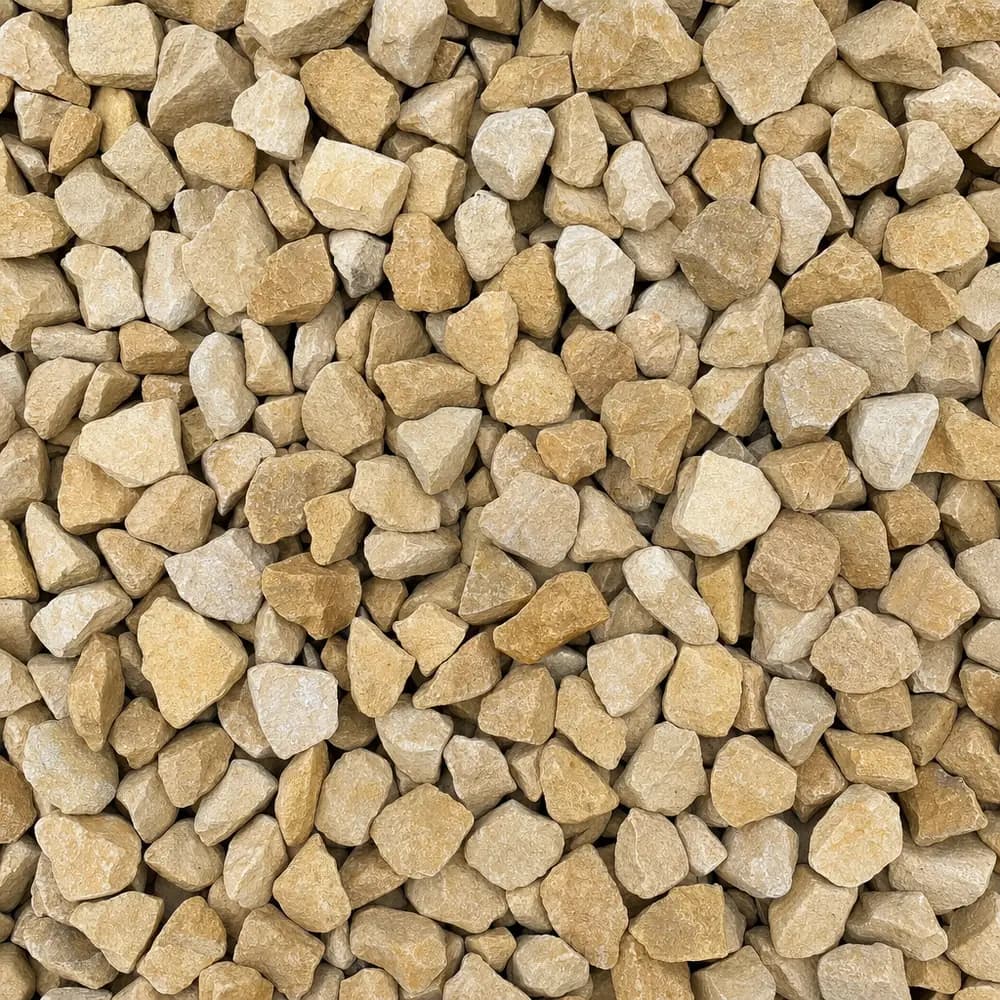

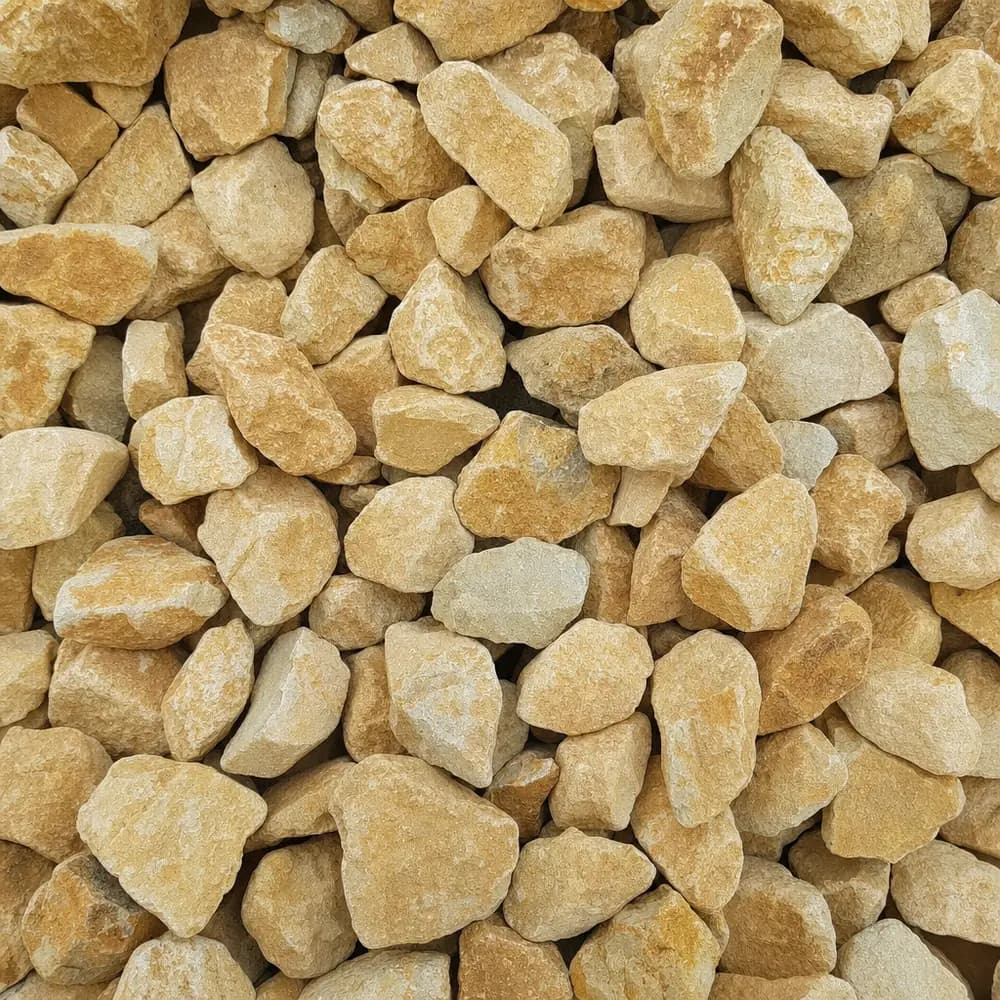

The stone itself is angular crushed rock graded to #57, which puts it between 3/16 inch and 1 inch. It arrives washed, so the crusher fines that would otherwise fill the gaps are gone.

Water standing on flat clay, and what #57 Stone does about it

The problem this material solves is simple to describe and stubborn to live with. On the flat glacial-lake silts and clays behind Lake Ontario and Lake Erie, on the valley floors along the Hudson and the Mohawk, and on the dense upland subsoils of the Southern Tier, water arrives faster than the ground can take it. Spring melt and heavy rain sit on the surface, and the saturated ground beneath heaves again the next time it freezes.

A clean stone gives water somewhere to go. Because the fines have been washed out, the spaces between the pieces stay open, and a trench or a bed filled with #57 Stone behaves like a channel rather than a sponge. That is the difference between this and a base material such as crusher run, which is built to have its voids filled so that it can lock up.

The trade-off is that open voids can be closed by anything fine enough to travel: silt from the trench walls, soil washed in from above, sand from a bank. A clean stone stays clean only if nothing is feeding it.

New York yards sell this size range under more than one label. 3/4" Crushed Stone is the graded size sold alongside it, and drain rock is the name that tends to follow the material into drywells, foundation drains and downspout runs. All of them are doing the same thing: holding a gap open.

How angular 3/16 to 1 inch stone behaves on till, clay and outwash

Angularity matters as much as size. The pieces have flat faces that catch on one another, so a bed of #57 knits together instead of rolling apart, which is why it will hold a shed pad and why it will not hold a barefoot path.

On stony glacial till upstate, a shallow bed of it over a compacted subgrade is usually enough. On the old lake clays, the stone will press down into soft ground under load unless something separates the two. On Long Island's sandy outwash, the ground already drains, so the stone is doing a structural job or a decorative one more often than a drainage one, and the risk there is sand migrating up into the voids.

Frost reaches about 4 feet down across most of the state, with the exact footing depth set by your local building department. Nothing in a drainage bed goes that deep, so the aim is not to get below frost. The aim is to keep water moving so there is less of it to freeze.

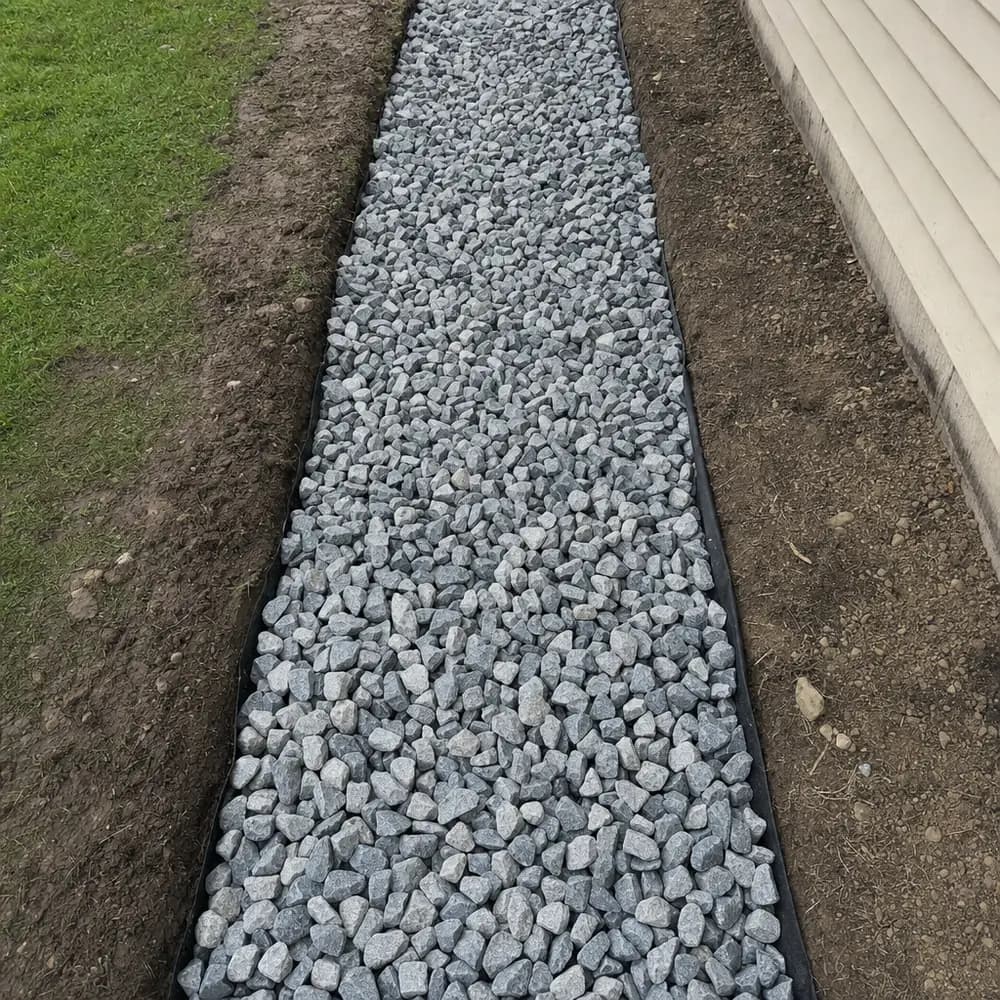

Cutting the trench, laying the fabric, keeping silt out of the voids

Cut to a consistent fall rather than a consistent depth. Water moves because of grade, and a flat-bottomed trench holds water at the low end no matter how clean the stone is.

Line the excavation with a non-woven filter fabric on anything but clean sand, bring the fabric up the walls, then fill with the stone and fold the fabric over the top before the soil goes back. That wrap is what keeps the surrounding ground from working its way into the voids.

For a shed or garage pad, the order is different: compact the subgrade first, then place the stone in a lift you can rake level, and tamp it lightly so the angular faces seat. Do not expect it to compact the way a base material does, because there are no fines to fill in behind.

A downspout splash area needs almost nothing by comparison. Cut a shallow dish, set an edge so the stone cannot scatter into the lawn, and fill it.

Sizing a 10 by 12 shed pad, a rock garden bed and a splash strip

Worked illustrations with invented dimensions.

Shed pad, 10 by 12 ft, 4 in of stone

• 10 x 12 = 120 sq ft
• 120 x 4 / 12 = 40 cu ft
• 40 / 27 = 1.5 cu yd

Rock garden bed, 18 by 6 ft, 2 in of stone over fabric

• 18 x 6 = 108 sq ft
• 108 x 2 / 12 = 18 cu ft
• 18 / 27 = 0.7 cu yd

Downspout splash area, 3 by 4 ft, 3 in deep

• 3 x 4 = 12 sq ft
• 12 x 3 / 12 = 3 cu ft
• 3 / 27 = 0.1 cu yd

The three together come to about 2.3 cubic yards. This site publishes #57 / 3/4 inch crushed stone at roughly 2,800 pounds per cubic yard, about 1.40 tons per yard, so 2.3 x 1.40 comes out at approximately 3.2 tons. Treat that as an approximate working figure, since damp stone off a pile after rain runs heavier. Because washed stone does not compact, there is no compaction allowance to add, though a little spare is worth having for topping up. To convert cubic yards into the tonnage the product page sells in, run the same figures through the stone calculator.

Topping up after a winter of plow spray and melt

A rock garden bed or a splash area loses a little stone each winter to plow spray, rakes and boots, and gains a little soil and leaf litter. Blowing the debris out in spring, before it breaks down into the voids, keeps the bed looking clean and draining properly for years rather than seasons.

A buried drain needs no upkeep if the fabric wrap was done properly. What it needs is an eye on the outlet: if the discharge point silts up or gets buried, the drain backs up from the bottom. Where water leaves the pipe onto a bank, heavier stone such as rip rap handles the scour that a clean 3/4 inch stone cannot.

Once you have a quantity, set it on the #57 Stone product page with a delivery date. Delivery is arranged at checkout by ZIP code, and the truck needs clear access to a firm dump spot.
