3/4" Crushed Stone: Clean Angular Grade for Wet New York Ground

Most orders for this size start with a mistake already in the ground. A wall was backfilled with the clay that came out of the excavation, a drain trench was filled with whatever was already sitting in the yard, or a pipe was laid straight onto the trench bottom. Then a wet spring arrives in the Hudson Valley or a February thaw runs off frozen ground, and the water that has nowhere to go pushes on the wall, backs up against the foundation or lifts the line out of grade. 3/4" Crushed Stone is the material that rebuild is done with: angular, roughly 3/4 inch, uniform enough that the gaps between pieces stay open under load. Order it by that name and by that size. Counter and plan-sheet grade numbers travel badly here, and the size printed on this page is what settles which product you are buying.

Where 3/4" crushed stone drains a layer that still has to take weight

The pairing of drainage and structure is what this size is for. Angular faces catch on one another, so a bed of it holds shape under a pipe, behind a wall or beneath a slab. The uniform sizing means there is no fine material to wash in and close the voids, so the same layer keeps carrying water away for as long as nothing else feeds silt into it.

Skip it for two jobs that come up on the same properties. A low spot or a yard regrade is earthwork: stone there makes a hard, wet patch that heaves and mows badly. Raise it with Fill Dirt, then finish with Top Soil where grass has to grow back. A culvert outlet or a ditch lining in the Catskills or the Southern Tier takes water moving with force behind it, and 3/4 inch stone is carried off in the first real storm. That is a job for RipRap.

Foundation drains, septic beds and pipe bedding across upstate ground

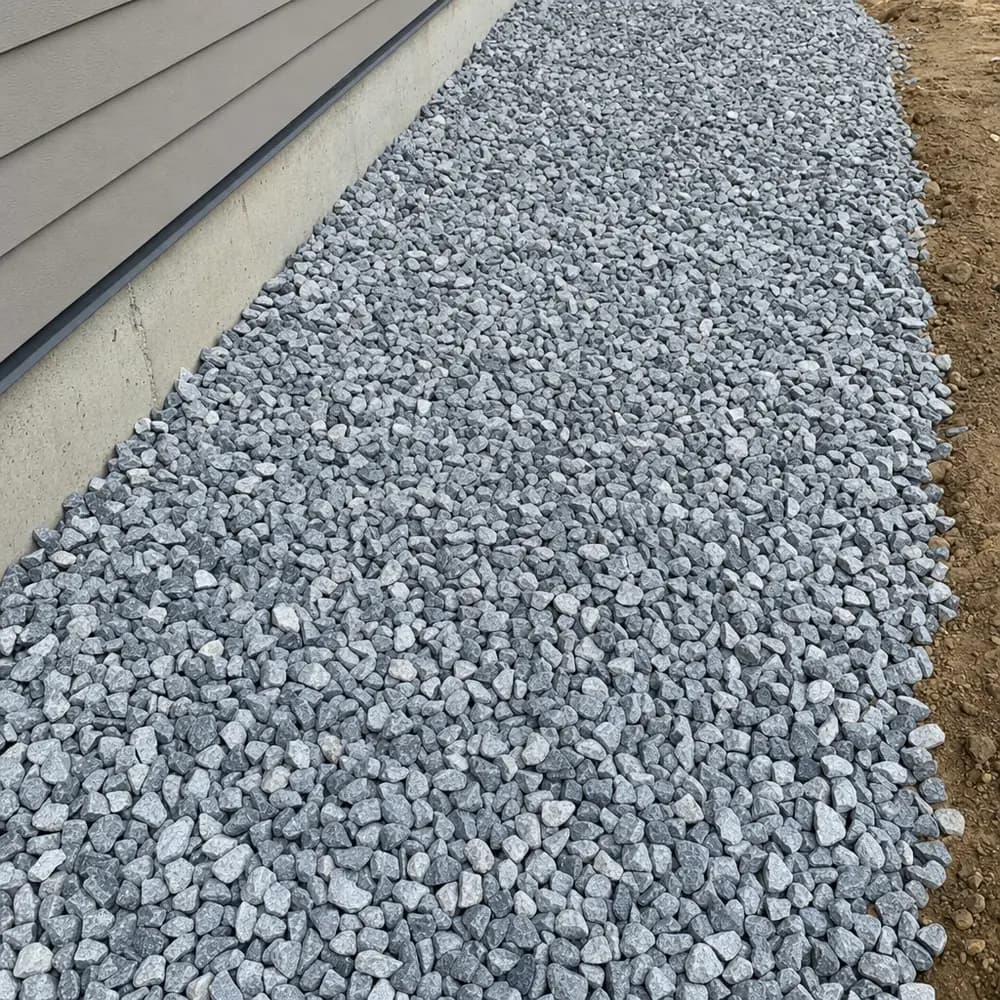

A drain along a house wall is the commonest use here. Cut the trench to a consistent fall rather than a consistent depth, lay filter fabric up both walls, put a few inches of stone in as bedding, set the perforated pipe on it, then surround and cover the pipe with more stone before folding the fabric over the top. The fabric wrap is the part that decides whether the drain is still working in ten years.

Septic and leach field work uses the same size for the same reason, though the design there is set by the approved plan rather than by preference. In pipe bedding, the stone gives a line something firm and even to sit on, which matters on the lake-plain clays and old glacial-lake silts where a pipe laid on the raw trench bottom slowly settles into it.

Behind a retaining wall, a vertical column of this stone against the back face gives water a route down to the drain at the base instead of a pressure load against the wall.

Why it beds tight under a slab and still walks loose on top

Compacting it is not the same as compacting a base. Run a plate over a lift and the angular pieces shuffle and seat against one another, which is what you want under a pad or a pipe. What does not happen is binding, because there are no fines to fill in behind. The layer ends up firm but permanently open.

That is why it works under a slab or a shed floor and disappoints on a driveway surface: tires pick the stone up, throw it into the grass and leave ruts. A drive wants a graded base of Item 4 or crusher run with Driveway Gravel on top.

Walking on it is possible but unpleasant, as it rolls underfoot and swallows a heel. Where a finished area also has to be walked on, put a compactable surface over it.

How deep to go, and what sits underneath on soft ground

Frost reaches around 4 feet across most of the state, with the local building department setting the exact footing depth. A drainage layer is not trying to get below frost, so the depth is set by the job: bedding under a pipe, a column behind a wall, or a full trench depth cut to fall.

On soft, wet ground the question is not depth but separation. Old lake clay and the silty valley floors will let a stone layer press down into them until half of it is buried and the voids are full. Non-woven filter fabric under and around the stone stops that. On the sandy outwash of Long Island, the ground drains already, and the fabric is there to stop sand working up into the layer.

Tons for a 55 foot drain trench beside a Catskills foundation

A worked example with invented dimensions.

Trench 55 ft long, 18 in wide, 18 in deep, with a 4 in pipe

• 18 in is 1.5 ft, so the cross section is 1.5 x 1.5 = 2.25 sq ft
• 55 x 2.25 = 123.75 cu ft
• 123.75 / 27 = 4.6 cu yd
• A 4 in pipe takes up roughly 0.09 sq ft, so 55 x 0.09 = 5 cu ft, near 0.2 cu yd
• 4.6 - 0.2 = 4.4 cu yd of stone

At this site's published weight for the 3/4 inch crushed family, about 2,800 lb per cubic yard or 1.40 tons per yard, 4.4 x 1.40 is roughly 6.2 tons. Order a little over: a trench that runs deeper than planned in one stretch will eat the difference, and topping a partly filled trench weeks later is awkward work.

Check the figures for your own trench on the stone calculator, then put a tonnage and a date on the 3/4" Crushed Stone page. Delivery is arranged at checkout by ZIP code. Have the trench open and the fabric ready before the load lands, so the pile is handled once.
