Item 4: The Base Stone Under New York Drives and Pads

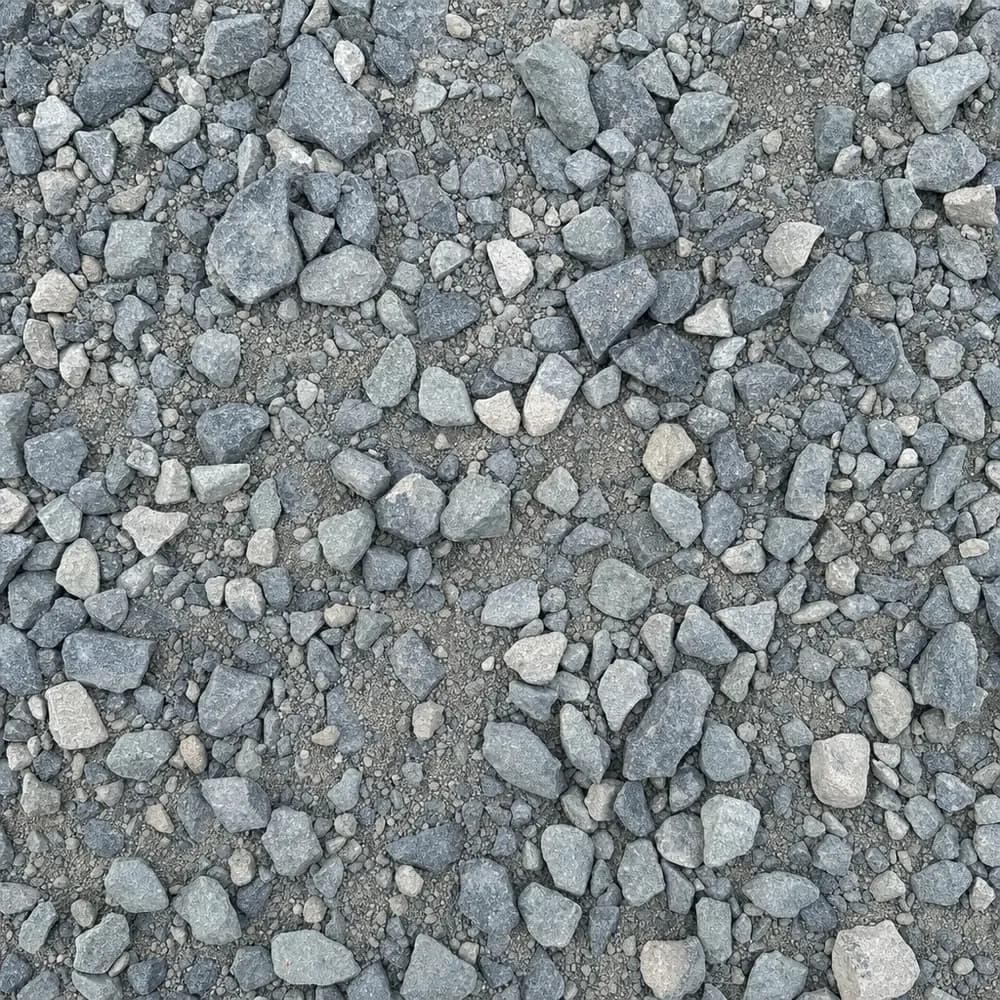

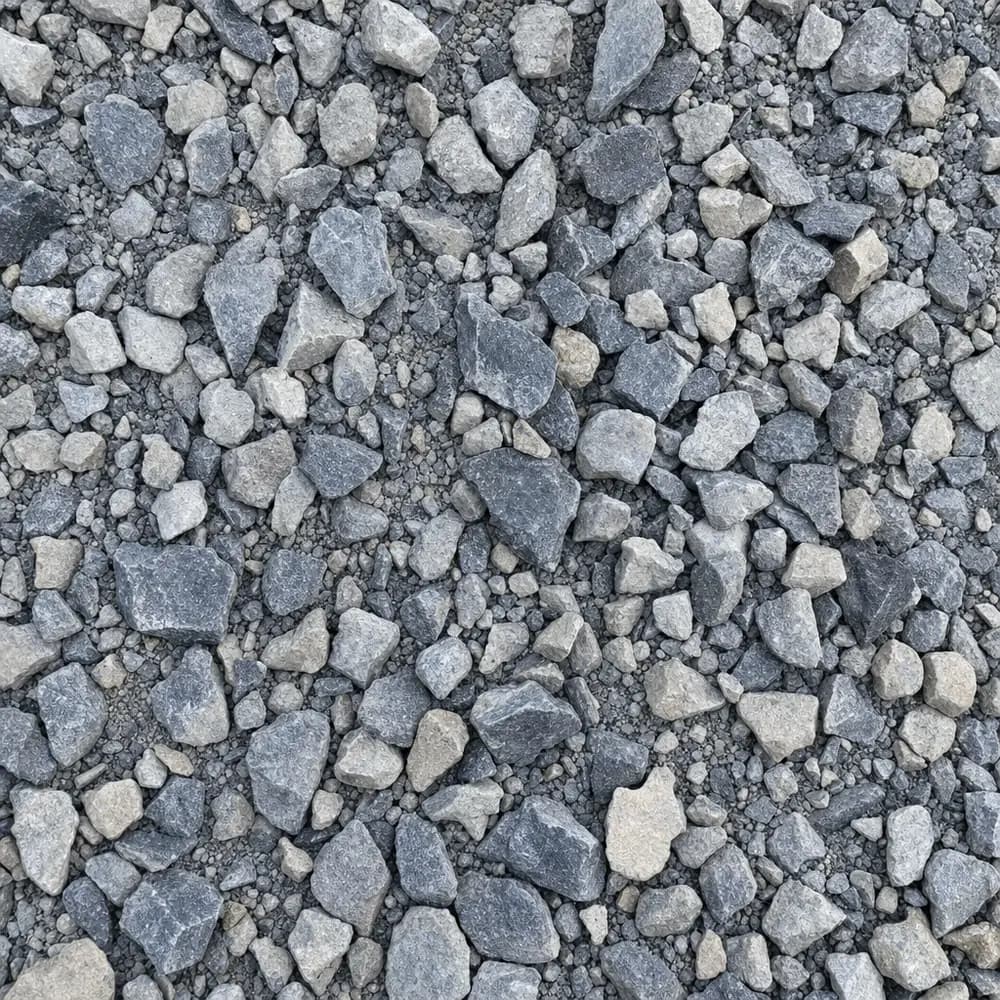

March, when the frost finally lets go of the ground upstate, is when the base-stone mix-ups turn up: stone dust spread where the job wanted Item 4, or Item 4 dropped into a trench that needed a washed stone. Item 4 is the trade name New York yards use for compacting subbase stone, and it lands as a 3/4 inch minus graded mix of crushed stone, gravel and binding fines. Stone dust is the fine screening that beds a flagstone and will not carry a vehicle on its own. A washed stone like #57 has the fines taken out so water runs straight through it. Item 4 is the one that keeps its fines, because those fines are what let the layer lock together under a plate compactor.

Crusher run is the closest thing to it on this site at 3/4 inch minus, and plenty of New York yards sell the two as the same kind of material. The practical difference is top size: the larger stone in Item 4 gives a deeper lift more to key against.

New York base materials are specified under NYSDOT Section 304 Subbase Course, with crushed stone sizes set separately in Table 703-4. That is how material gets described on a plan sheet here. It is not a certification this storefront holds.

The upstate window runs from thaw to freeze-up

Base work runs from the spring thaw into late fall, because frozen ground will not compact. The usable season is shortest in the Adirondacks and on Tug Hill, where a deep lake-effect snowpack sits late and the ground beneath it stays cold. It is longest on Long Island and in New York City, where the ocean keeps winters milder, though the ground there still freezes and thaws every year.

Spring sets a second trap. Silt and clay valley floors along the Hudson and the Mohawk, and the flat lake-plain ground inland of Lake Erie and Lake Ontario, stay soft long after the surface looks dry. Rolling Item 4 over a subgrade that is still pumping water does not give you a base. It gives you a layer that has to come out again.

Frost reaches roughly 4 feet down across most of the state, and your local building department sets the exact footing depth. No gravel base goes anywhere near that deep, which is why a thin lift heaves and loosens each spring.

Reading the subgrade before the load is tipped

Strip the sod and the topsoil first. Item 4 laid over organic material settles unevenly no matter how hard you pack it. Cut down to the full depth of everything that is going in, not just the base course, so the finished surface ends up at the grade you wanted.

Then walk it. If your boot heel sinks, or a loaded wheelbarrow leaves a rut, the ground is not ready. On the dense upland subsoils of the Southern Tier and the Catskills, and on the old glacial-lake clays, a separation fabric under the stone stops the base working its way down into the soft material below.

Set a crown or a cross-fall before the stone goes down, around a quarter inch of fall per foot, so snowmelt runs off the surface instead of soaking in. Pick the dump spot ahead of the delivery date: delivery is arranged at checkout by ZIP code, and the truck needs a clear route and firm ground to tip on.

A pole barn pad, a gravel drive and a flagstone walk

A pole barn or equipment pad is the deepest of the three. It takes concentrated point loads from tractor tires and stacked material, so the base goes in as two lifts rather than one deep dump, each one damp enough to bind but not so wet that it pumps.

A single-car gravel driveway wants a compacted base with a separate top course over it. Item 4 is the layer underneath; driveway gravel is what you look at and drive on. Skip the top course and the fines sit exposed, and the first spring thaw will find them.

A flagstone walkway asks the least of the stone and the most of the leveling. The Item 4 goes in as a thin compacted bed, then a screeded bedding course sets the individual pieces.

Soft clay ground and heavy use both push you toward the deeper end of that range.

Measuring a 24 by 36 foot pole barn pad

These are illustrations with made-up dimensions, not jobs that were built.

Pole barn pad, 24 by 36 ft, 6 in compacted

• 24 x 36 = 864 sq ft
• 864 x 6 / 12 = 432 cu ft
• 432 / 27 = 16 cu yd

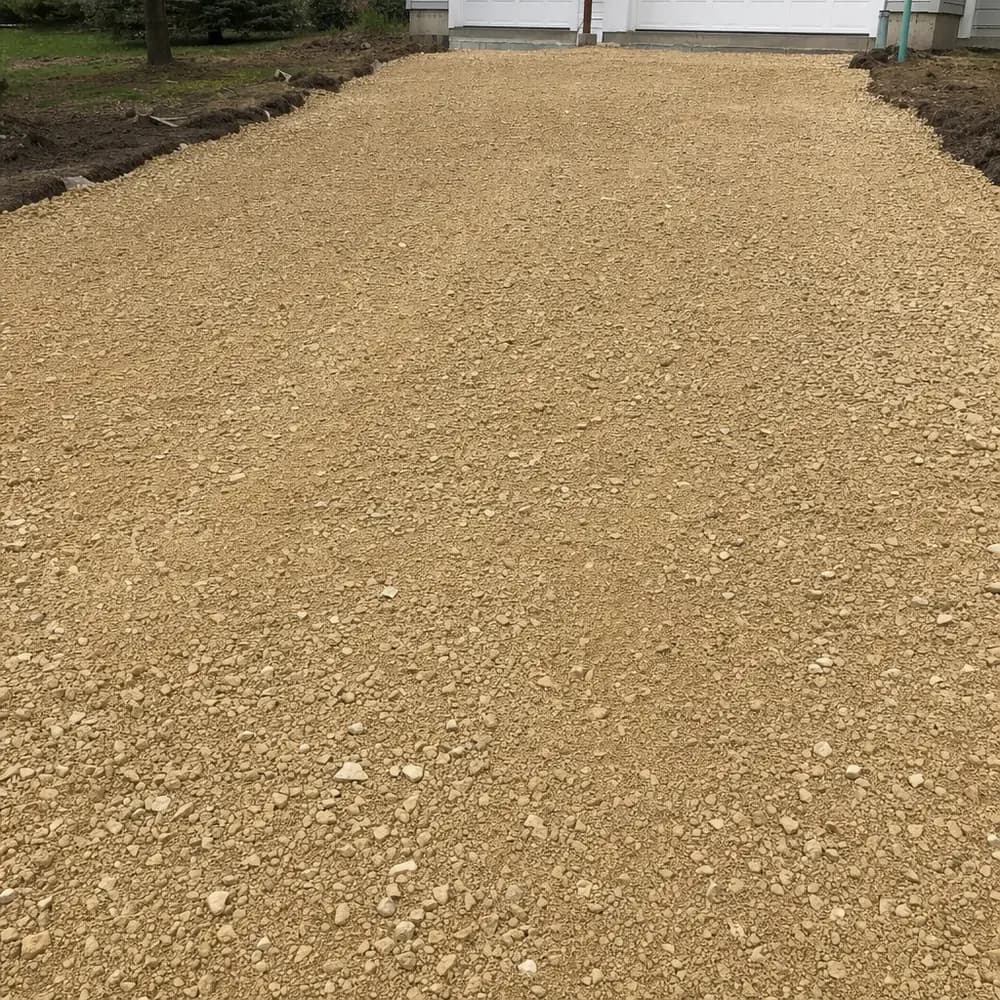

Single-car drive, 10 by 60 ft, 4 in base

• 10 x 60 = 600 sq ft
• 600 x 4 / 12 = 200 cu ft
• 200 / 27 = 7.4 cu yd

Flagstone walk, 3 by 30 ft, 4 in base

• 3 x 30 = 90 sq ft
• 90 x 4 / 12 = 30 cu ft
• 30 / 27 = 1.1 cu yd

Those are loose volumes before compaction, so add a little to each. The three add up to 24.5 cubic yards, and this site publishes road base at roughly 3,000 pounds per cubic yard, about 1.50 tons per yard, so 24.5 x 1.50 is approximately 36.8 tons on an approximate weight. To turn cubic yards into the tonnage you actually order by, put the same measurements into the road base calculator, which applies the weight figure for this material and carries a box for compaction and spillage.

What the first spring thaw exposes

A properly built base does not need annual attention, but the surface above it does. Frost action loosens the top of a gravel drive every year upstate, and the fix is to drag the ruts closed before adding material rather than burying them. If a soft spot keeps returning in the same place, the problem is drainage under the base, not the thickness of it.

Where a plow blade runs, keep the edges defined. Each winter carries a little material into the lawn, and a topping load every few seasons is ordinary maintenance on a gravel drive here.

What to settle before you book a load of Item 4

Fix your depth first, then your area, then the quantity. Once you have a number, open Item 4 on this site, set the amount, choose a delivery date and confirm the delivery ZIP at checkout. If you are torn between this and crusher run for a particular pad, New York Rock Supply takes questions by call or text from the contact page.
