#8 Crushed Stone for New York Permeable Patios and Drain Layers

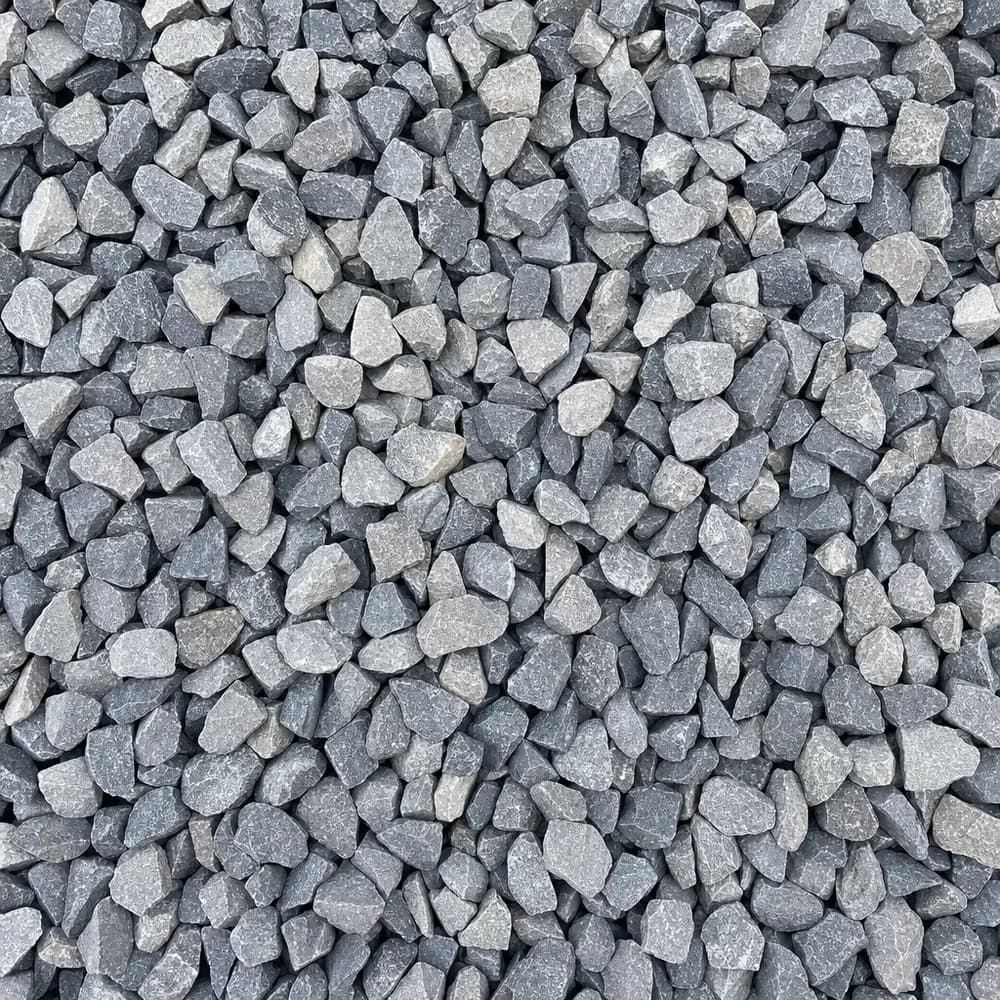

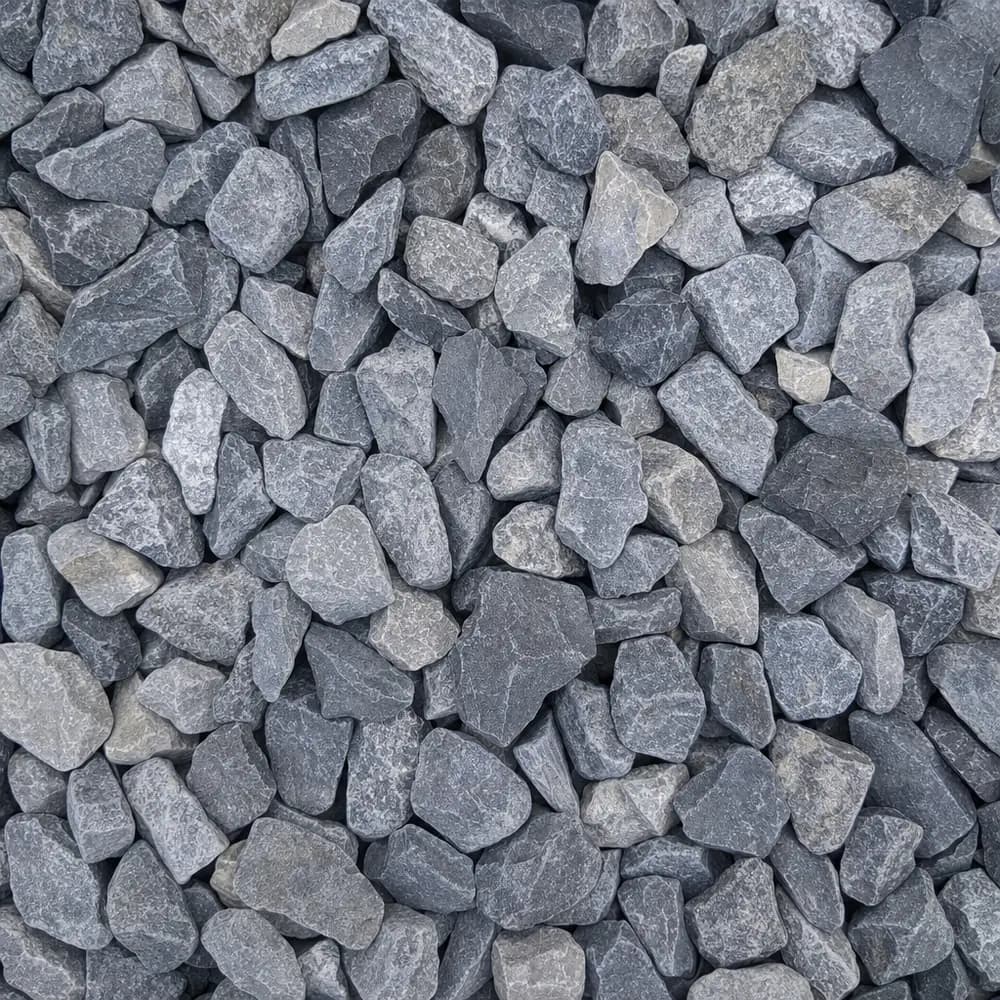

Rain that lands on a Long Island driveway mostly disappears into the sandy outwash underneath it. The same downpour on the old lake clays behind Rochester, or on the dense upland subsoil of the Southern Tier, sits exactly where it fell, and every new hard surface in the yard makes the puddle a little bigger. That is the argument for a patio built to drain through itself, and #8 Crushed Stone is the size those builds run on: roughly 3/32 inch to 3/8 inch, crushed, and clean enough that there is almost nothing in it to plug the gaps between the pieces.

Several small stones on the order form look close to identical in a photograph. What separates them is not the number on the label but how much crusher dust travels with the stone.

Is it the dust or the size that decides which small stone you want?

Fines are the powdered rock left over from crushing. Leave them in and they pack into the voids, so the layer binds and stiffens but stops passing water. Wash them out and the layer keeps its open structure for as long as nothing else fills it, which is what a permeable build is paying for.

That one difference sorts the shelf. #89 Crushed Stone has a similar top size but keeps its fines, so it settles tight into joints and under flagstone. 3/8" Crushed Stone is a finish surface over a prepared base rather than a drainage layer. Step up a size and you are into 3/4" Crushed Stone, which goes into trenches and behind walls.

An easy check on delivery: take a handful and let it run through your fingers. A clean grade leaves your palm dusty at worst. If your hand comes away coated and the pile holds a footprint, that load will pack, not drain.

What does a permeable patio over Hudson Valley clay ask of the bedding course?

A permeable paver build is three layers doing three jobs. Below is a thick lift of larger clean stone that holds water while it waits to soak away, then a thin bedding course of #8 screeded flat, then the pavers, with the same small stone brushed down into the joints so the surface takes rain in from the moment it lands.

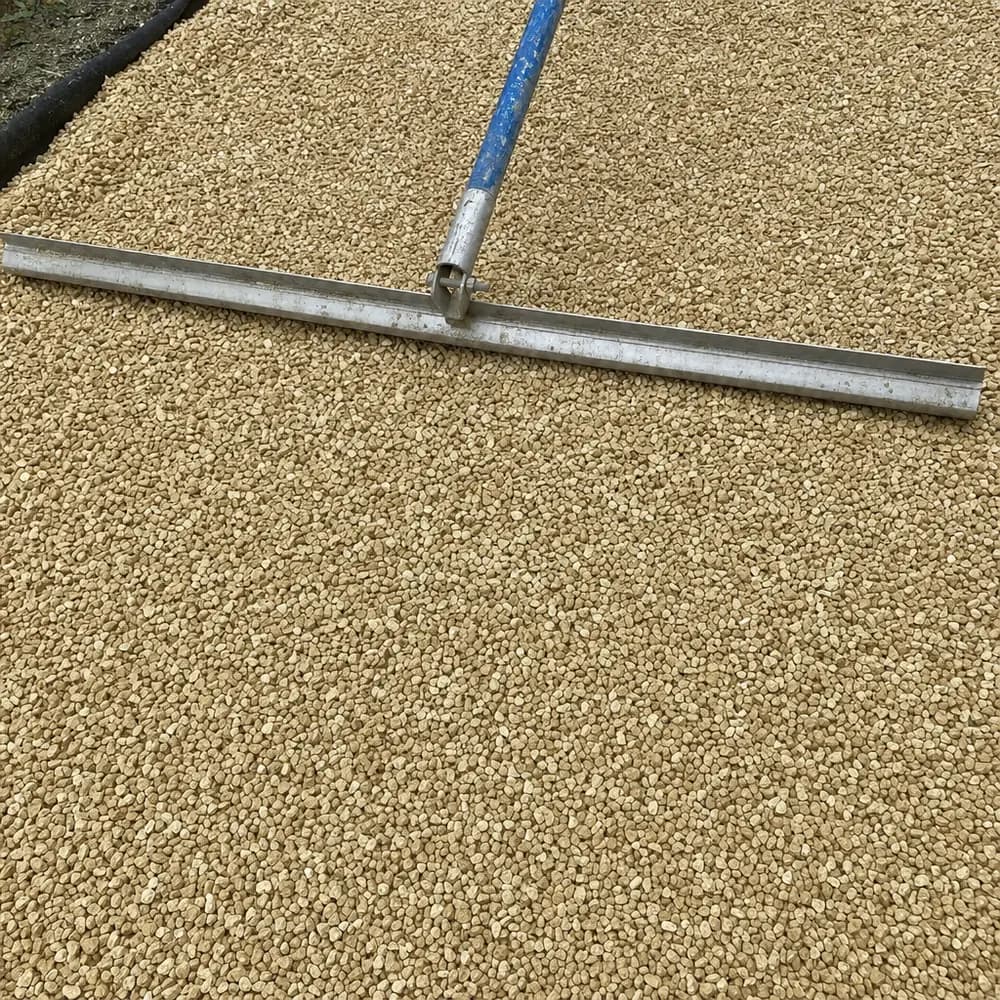

Two inches of bedding is the usual screed on this kind of build. It is screeded rather than compacted, because a clean grade has nothing in it to bind and simply rearranges itself under a plate compactor. The pavers get the compaction pass once they are down.

On the silts and clays of the Hudson and Mohawk valley floors, the ground below will not take water quickly no matter what sits above it, so the storage in the stone layer is the whole system. Plan where the overflow goes during a March rain on frozen ground, because that is the day it gets tested.

For a conventional patio none of this applies. A standard paver job over an Item 4 base is bedded on stone dust, not on a washed chip.

Does a dry creek bed want stone this small?

No. Runoff coming off a Catskills or Finger Lakes hillside after a summer cloudburst picks up 3/8 inch stone and stacks it at the first bend. A dry creek that has to survive flash flooding wants Large River Rock for the channel itself, with smaller cobble worked into the shoulders. Keep this grade for jobs where it is buried or confined.

Will a fire pit circle in #8 crushed stone hold up under dragged chairs?

Partly, and it depends what you want underfoot. A clean chip around a fire ring drains after rain, does not burn and rakes back level in a minute. What it will not do is stay still: chair legs and boot heels push loose stone aside because there are no fines locking the pieces together. Ring the circle with edging so the stone stays inside the line, and expect to rake it every few weeks through the summer. For a floor that stays where you put it, a compactable small grade or a screeded dust bed is the firmer answer.

How much does a 16 by 20 patio bed and a 9 foot fire circle take?

Both figures below are worked examples with invented dimensions.

Patio bedding, 16 by 20 ft, 2 in screeded

• 16 x 20 = 320 sq ft
• 320 x 2 / 12 = 53.3 cu ft
• 53.3 / 27 = 2.0 cu yd

Fire circle, 9 ft across, 3 in deep

• 9 ft across means a 4.5 ft radius, so 3.14 x 4.5 x 4.5 = 63.6 sq ft
• 63.6 x 3 / 12 = 15.9 cu ft
• 15.9 / 27 = 0.6 cu yd

Together that is about 2.6 cubic yards. This site's own published figure for the 3/8 inch chip family is roughly 2,800 lb per cubic yard, or about 1.40 tons per yard, so 2.6 x 1.40 lands near 3.6 tons. Joint fill comes off the same load rather than being measured separately, and a little spare is worth carrying, because joints drop after the first heavy rain and want topping.

Run your own dimensions through the stone calculator if the area is broken up, then set the tonnage and a date on the #8 Crushed Stone page. Delivery is arranged at checkout by ZIP code, and the truck needs a firm, clear spot to tip.
